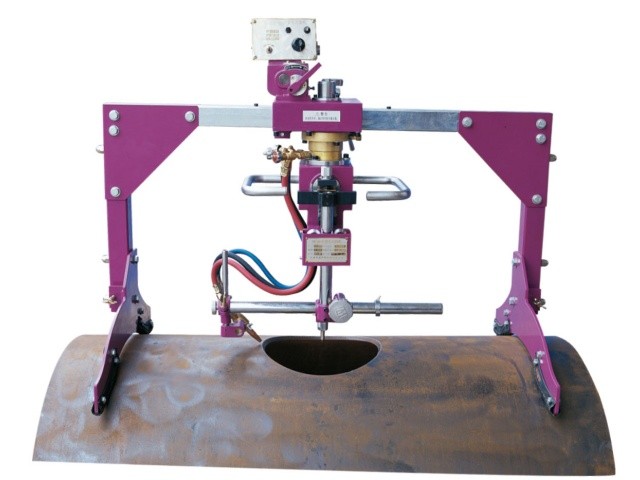

This machine is used for high-precision cutting of T-joints of intersecting pipe holes of high-pressure containers and heat exchangers. It can also open holes or bevel cuts on steel plates.
This machine is used for high-precision cutting of T-joints of intersecting pipe holes of high-pressure containers and heat exchangers. It can also open holes or bevel cuts on steel plates.
This machine has the characteristics of high cutting efficiency, easy operation, and smooth operation;
The cutting torch height is easy to set, and the self-locking mechanism of the cutting torch up/down uses the principle of trigonometry to enable the mechanical device to accurately track the curved surface.
The infinitely rotating gas distributor is used to prevent the pipeline from being entangled.
The design is carefully considered to reduce the dead weight as much as possible and make it easy to carry.
The cutting torch is equipped with a clutch device, which can be quickly positioned by the handle.
|
Specifications |
Steel pipe diameter |
Cutting wall thickness |
Cutting speed |
Cutting circle diameter |
Dimensions |
weight |
|
mm |
mm |
rpm |
|
mm |
kg |
|
|
HK-600D |
Ф80-600 |
6-50 |
0.14-1.2 |
Ф40-300 |
1060*560*820 |
50 |
|
HK-1000D |
Ф80-1000 |
6-50 |
0.14-1.2 |
Ф40-500 |
1460*560*820 |
54 |

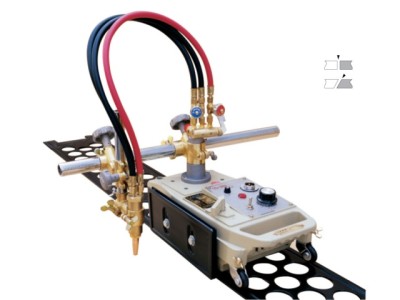

This series of cutting machines is a device that uses gas combustion to generate high temperature and perform thermal cutting on metal plates. It is widely used in the cutting and beveling of seamless steel pipes in factories and mines such as petroleum, chemical, shipbuilding, electric power, machinery, and steel structures. It has a compact design, light weight, can operate continuously, has high cutting efficiency, and low cost of use.
"CG2-11(Quick Install)Hand Pipe Gas Cutter Series is suitable for fast installation and cutting of seamless steel tube, also suitable for field operation.The machine is equipped with two clamping device, which can adjust locking wheel position according to the steel pipe diameter. To process a batch of the same size of the steel tube, after the first installation and debugging of machine, can quickly through the locking device installed on other same specifications of steel, to save the time needed for adjusting machine, and improve production efficiency.
The HK saddle beveling gas cutter series is specifically designed and developed for cutting requirements in pipe intersecting welding. Pipe intersecting welding necessitates the cutting of saddle-shaped joints.
