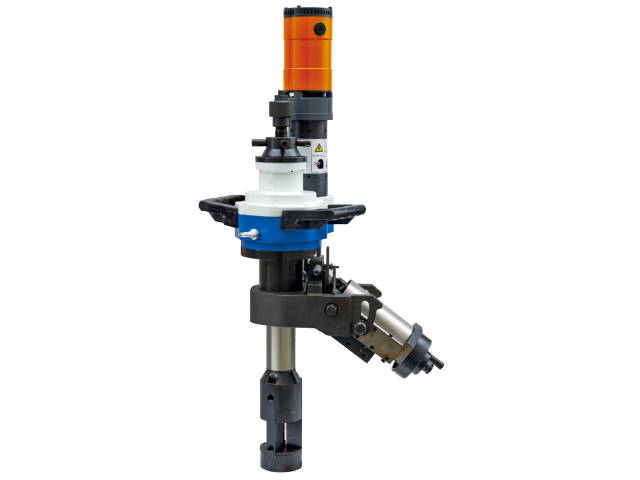

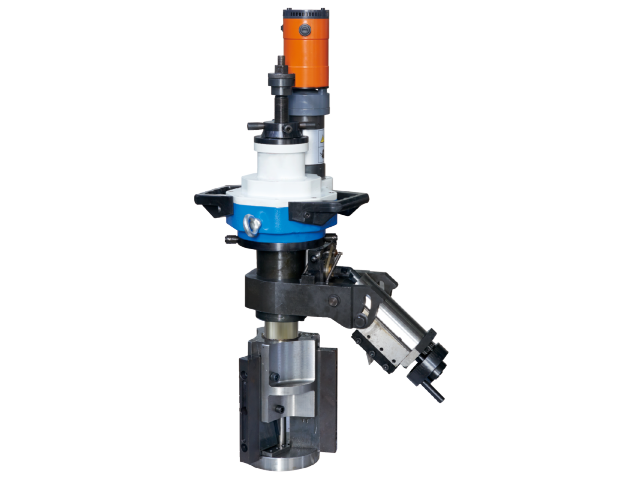

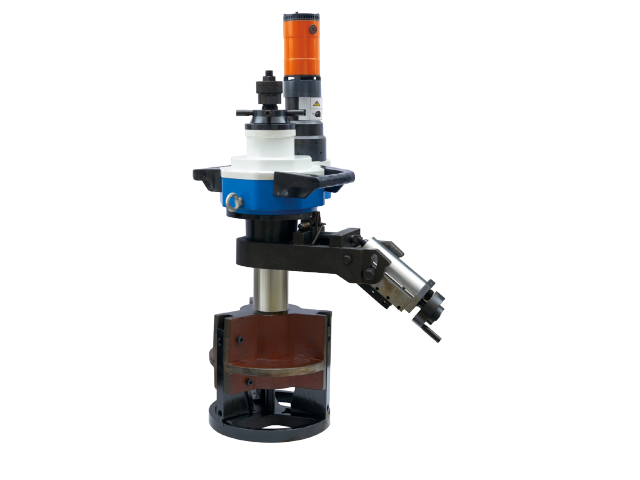

This machine can face and bevel all type of pipe ends, pressure vessel and flanges. it adopts "Y" design to realize the minimal radial working space. With the light weight. It is portable and can be used on-site working situation. it is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. lt is widely applied in heavy type pipe lines
|
Model |
Working range ID mm |
Wall thickness mm |
Power kw |
Rotation rpm |
|
|
Electric |
Pneumatic |
||||
|
ISY-150 |
TCM-150 |
Ф60-170 |
≤15 |
1.43 |
30 |
|
ISY-250 |
TCM-250 |
Ф80-240 |
≤15 |
1.43 |
16 |
|
ISY-351 |
TCM-351 |
Ф150-330 |
≤15 |
1.43 |
10 |
|
ISY-457 |
TCM-457 |
Ф250-430 |
≤15 |
1.43 |
9 |
|
ISY-630 |
TCM-630 |
Ф300-600 |
≤15 |
1.43 |
8 |
|
ISY-850 |
TCM-850 |
Ф600-820 |
≤15 |
2.0 |
7 |
POWER SUPPLIES:
Electric: 1.43 2.0kw @220-230V 50-60Hz,1P
Pneumatic: 1500-2000L/min@0.63-0.8MPa
Heavy duty pipe beveling machine is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces. With the special structure designing,
