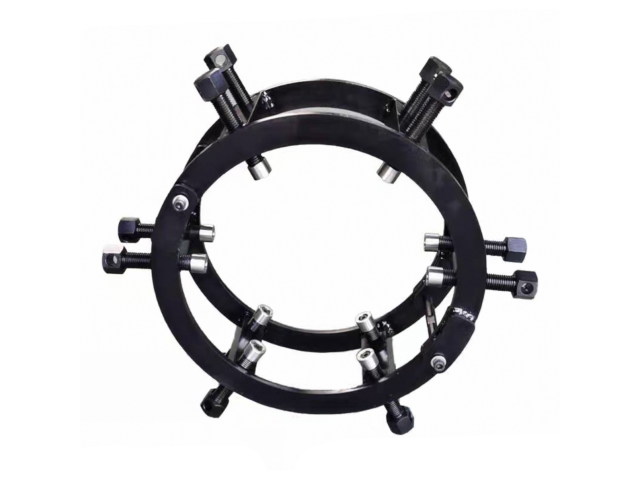

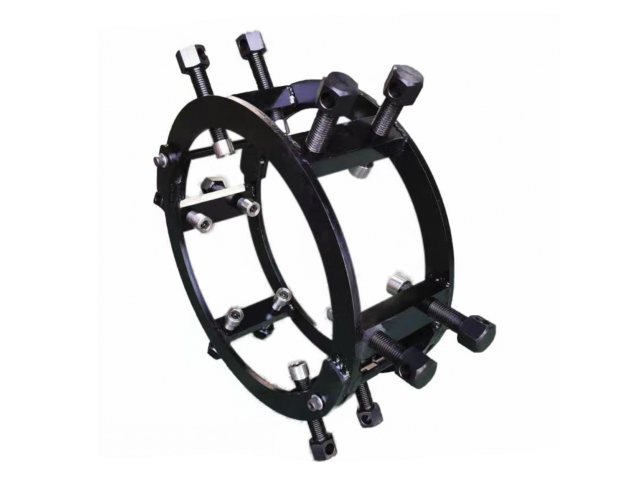

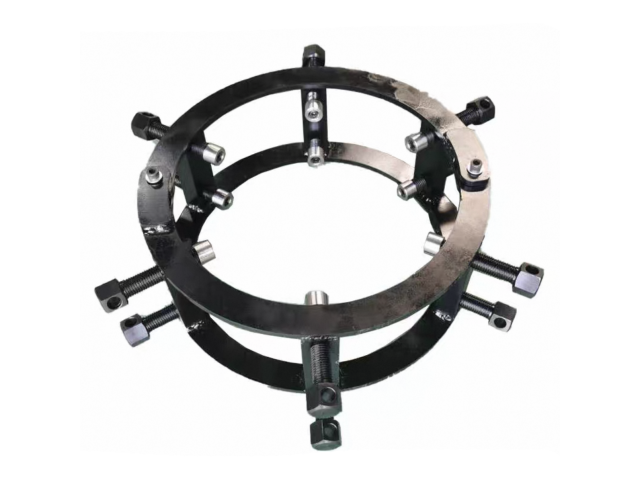

Jack Bolt Type Large-Diameter Pipe Aligner

This product is a mechanical pipe alignment device that utilizes high-strength adjusting bolts (jack bolts). By manually rotating these bolts, it generates powerful radial clamping force to restore pipe end roundness, align pipe sections, and secure the joint interface. Characterized by its simple structure, durability, reliability, and low cost, it achieves precise pipe end shaping, accurate positioning, and stable support. It provides the crucial foundation for obtaining high-quality circumferential weld seams, making it an essential tool for large-scale pipeline engineering projects.

Online Inquiry Contact Us

OVERVIEW

FEATURES

Simple, robust, and reliable structure, resistant to malfunction.
Requires no power supply or external power source, offering strong adaptability for use in remote areas or locations without power.
Adjustable support base protects pipe surfaces from damage.

SPECIFICATION

Model	Clamping Range
Model	mm	inch
JBA219	219	8.6”
JBA273	273	10.7”
JBA325	325	12.8”
JBA355	355	14.0”
JBA377	377	15”
JBA406	406	16”
JBA426	426	16.8”
JBA457	457	18”
JBA508	508	20”
JBA610	610	24”
JBA630	630	24.8”
JBA720	720	28”
JBA820	820	32”
JBA920	914	36”
JBA1020	1016	40”
JBA1220	1219	48”
JBA1420	1420	56”
JBA1620	1620	63.8”

*Customized solutions for special sizes are available; please specify your requirements when ordering.
