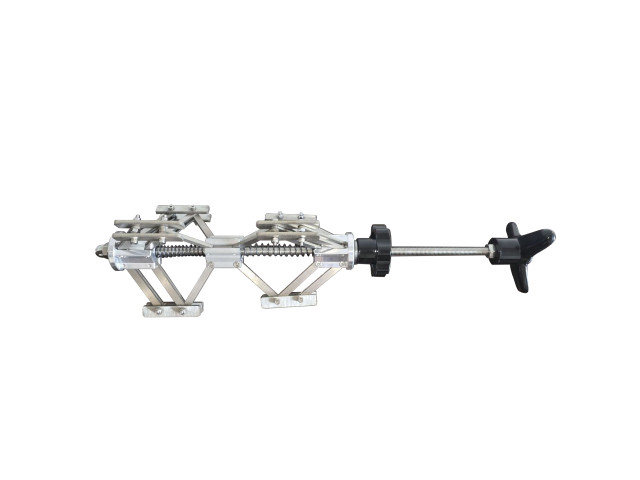

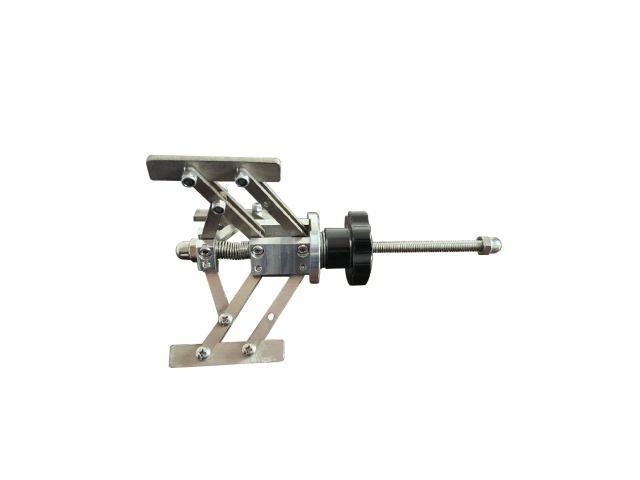

Pipe Internal Alignment Clamp

This product is a specialized tool designed for pipe welding. It assists welders in rapidly achieving precise alignment for connecting pipes to flanges or pipes to pipes. Welding can commence immediately without the need for tack welding. Suitable for chemical piping, food processing piping, and other engineering applications.

OVERVIEW

This product is a specialized tool designed for pipe welding. It assists welders in rapidly achieving precise alignment for connecting pipes to flanges or pipes to pipes. Welding can commence immediately without the need for tack welding. Suitable for chemical piping, food processing piping, and other engineering applications.

FEATURES

  • Stepless adjustment,wide range of applicability.
  • Tack welding elimination, enhances welding efficiency.
  • Threaded jacking screw design, provides secure fixation.
  • Dual-stage expansion,flexible operation.
  • Optional PTFE support pads, protects the inner pipe wall from damage.
  • Lightweight,easy to carry and handle.
  • Compact design, convenient for transport and use.

SPECIFICATION

Model

Clamping Range (Inner Diameter)

mm

inch

IN005

54 - 140mm

2" - 5 1/2"

​IN006

76 - 156mm

3” - 6”

IN008

85 - 220mm

3 1/2" - 8 1/2"

​IN009

120 - 240mm

4 1/2” - 9 1/2”

​IN012

200 - 320mm

8” - 12 1/2”

IN013

120 - 350mm

4 1/2" - 13 1/2"

IN020

180 - 520mm

7" - 20 1/2"

IN035

400 - 900mm

15 1/2" - 35 1/2"

*Other size ranges available upon request. Please specify when ordering.

Online Inquiry

Related Products

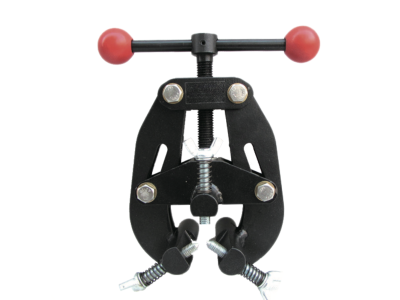

Precision Pipe Welding Alignment Tool

Precision Pipe Welding Alignment Tool

This product is a specialized tool designed for pipe welding. It assists welders in quickly completing tack welding preparation. It is suitable for precisely aligning and connecting pipe-to-pipe, pipe-to-elbow, and pipe-to-flange joints, ensuring coaxial alignment of the connected pieces. This guarantees roundness, gap consistency, and concentricity of the pipe ends meet welding requirements, preventing misalignment or uneven gaps that can compromise weld quality.

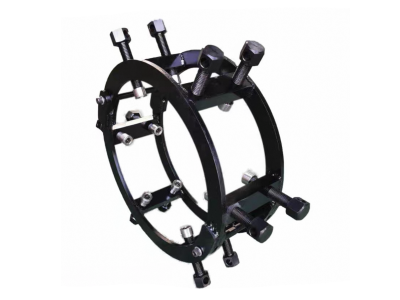

Jack Bolt Type Large-Diameter Pipe Aligner
