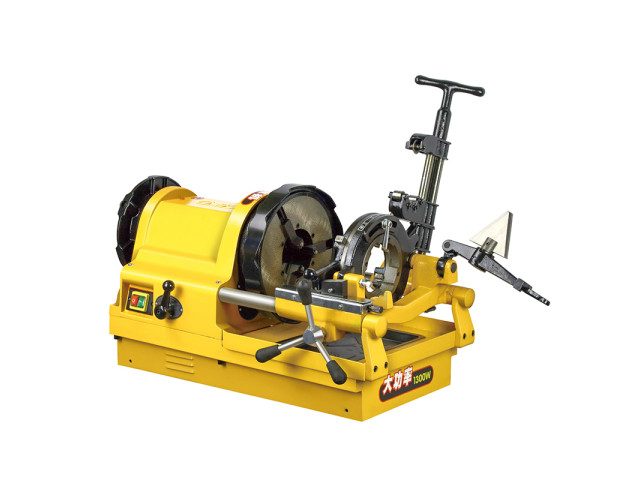

The SQ100A-G electric pipe cutting and threading machine offers a wide processing range, equipped with a high-efficiency induction motor, wedge-type die retraction, and automatic thread length control. Its heavy-duty gearbox design features fully hardened steel gears, ensuring structural reliability, high machine efficiency, and low noise. The main switch is concealed under the die-cast aluminum head, providing waterproof protection and reduced risk of damage.
|
W orking Range |
OD1/2”-4” |
|
Motor |
1300W, voltage 220V or 380V 50Hz, induction motor. |
|
Motor Control |
Forward rotation main switch |
|
Speed |
31/14 RPM |
|
Chuck |
Hammer-style chuck design with replaceable chuck tips |
|
Pipe Cutter |
Self-centering 1/2"-4" |
|
Scraper |
1/2"-4" |
|
Lubrication System |
Integrated oil reservoir through-type lubrication, automatic circulation
|
|
Threading Capacity |
BSPT, NPT |
*Different industry demand different model, please declare before order
This machine utilizes a cutting tool (tap) to rotate or move along pipes, removing material to create threads. For applications demanding high-precision thread processing, the pipe threading machine ensures standardized and accurate threads.
The SQ100A-G electric pipe cutting and threading machine offers a wide processing range, equipped with a high-efficiency induction motor, wedge-type die retraction, and automatic thread length control. Its heavy-duty gearbox design features fully hardened steel gears, ensuring structural reliability, high machine efficiency, and low noise. The main switch is concealed under the die-cast aluminum head, providing waterproof protection and reduced risk of damage.
The SQ100F is a widely applicable professional threading machine designed for high-demand threaded connections in water pipelines, gas pipelines, chemical pipelines, and petroleum pipelines. It features a high-power induction motor, an integrated spindle and gearbox design for high transmission accuracy, compact structure, and a special capacitor-start/capacitor-run motor that ensures reliable operation even under low voltage conditions.
The 1/2"-2" self-opening die head and 2 1/2"-4" self-opening die head allow straight pipe threading without changing tools or die heads—only mechanical adjustment is needed. Equipped with automatic lubrication and adjustable oil flow, it continuously lubricates the dies and workpiece through the die head, extending die service life.
