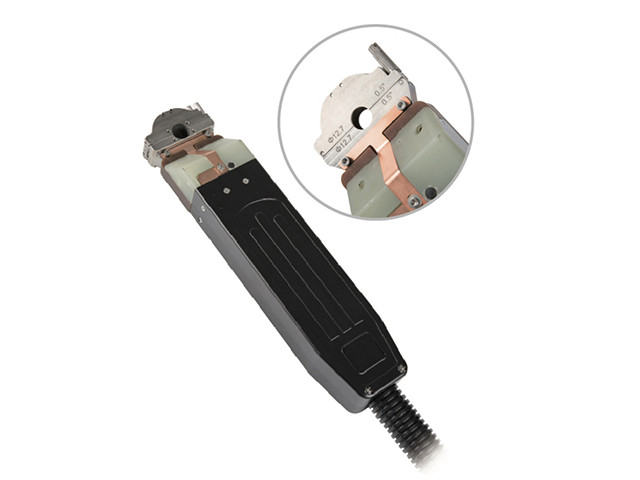

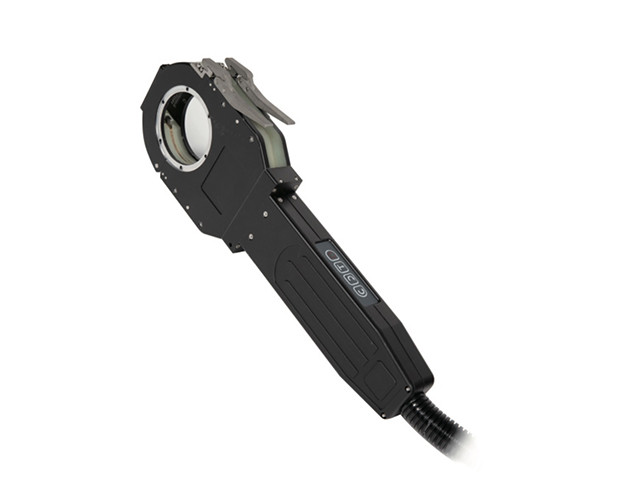

Enclosed TIG Orbital Welding Head For Tube/Tube Welding

OVERVIEW

This welding head is a special welding head for orbital automatic tungsten arc welding(without welding wire)designed for the butt joint of various pipe fittings. Before welding, the sealing cavity is filled with protective gas to ensure that the welding seam is well protected. And according to customer requirements, we can customize the compound fixture within the pipe diameter range. This fixture system can ensure the precise positioning of the welded parts without the need for positioning spot welding, so as to provide customers with high-efficiency and high-quality special welding guns. This machine can precisely realize all-position TIG tube/tube welding,with high reproducibility of welding results and ideal welding results.Mainly used in electronics,instrumentation,pharmaceutical,engineering installation,military and nuclear power industries.

FEATURES

The main part of the welding head is made of aluminum, and the structure is light;
The sealed design is adopted, and the protection effect is more sufficient;
Patented flexible automatic centering fixture, precise positioning;
Suitable for tube welding of thin-walled carbon steel, stainless steel, titanium and titanium alloys;
Self fusion welding method;

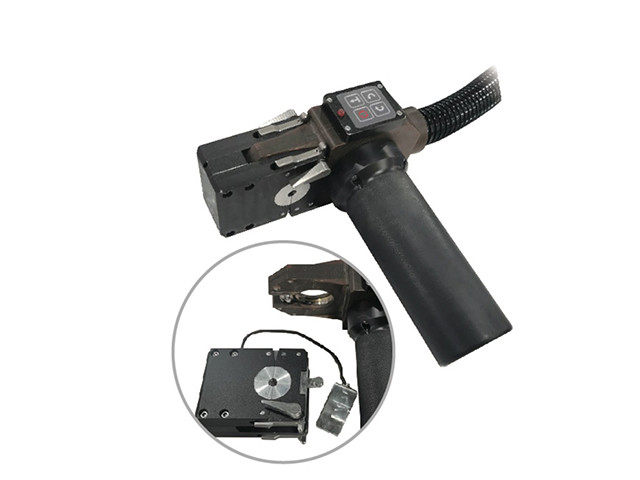

Equipped with operation buttons on the welding head, the welding head is easy to use and suitable for on-site installation.

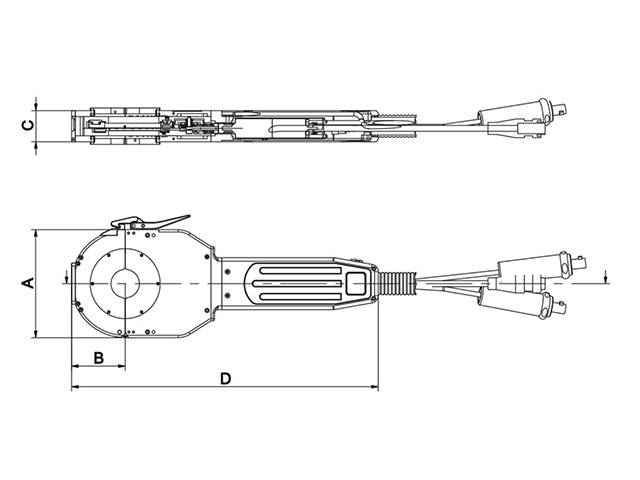

SPECIFICATION

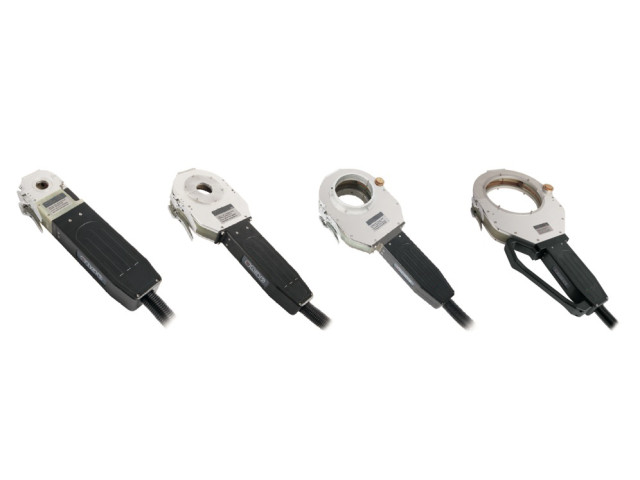

Model	Working range(mm)	Tungsten electrode diameter(mm)	Rotation speedrpm	Protective gas	Cooling method	Cooling flow (ml/min)
TC26	Φ6-22	Φ1.0、Φ1.6	0.6-12	Argon	Water cooling	≥300
TC36	Φ6-32	Φ1.6、Φ2.4	0.3-6	Argon	Water cooling	≥300
TC76	Φ19.05-63.05	Φ1.6、Φ2.4	0.2-4	Argon	Water cooling	≥300
TC156	Φ50.8-168.3	Φ2.4、Φ3.2	0.06-1.2	Argon	Water cooling	≥300
TC-5H	Φ3-12.7	Φ1.6	0.7-14.2	Argon	Air cooling	≥300
TC-500	Φ6-12.7	Φ1.0	0.6-12	Argon	Air cooling	≥300
TC-2	Φ12.7-50.8	Φ1.6、Φ2.4	0.24-4.8	Argon	Water cooling	≥300
TC-3	Φ19.05-76.2	Φ1.6、Φ2.4	0.2-4	Argon	Water cooling	≥300
TC-4	Φ38.1-101.6	Φ2.4、Φ3.2	0.095-1.9	Argon	Water cooling	≥300
