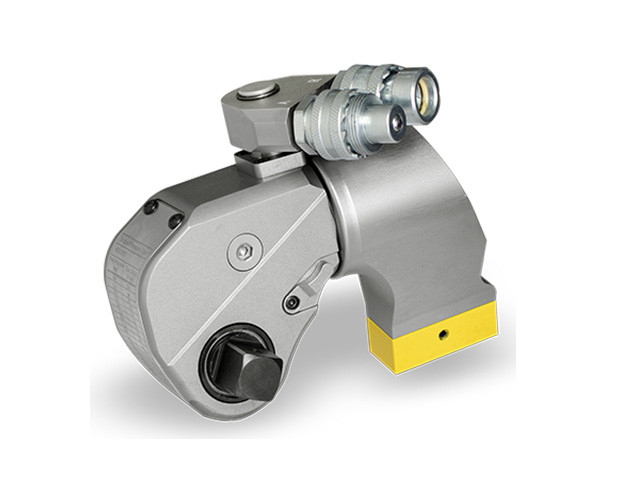

The IBT series uses aluminum-titanium alloy aviation materials. The hydraulic torque wrench is light in weight and high in strength. It has 10 standard models ranging from 112N.m to 72000N.m. It is applicable to many specifications and covers a wide range of bolts.
IBT Series Hydraulic Torque Wrench Selection Table
|
Model |
Torque range(N.m) |
Bolt size(M) |
Weight(Kg) |
Drive shaft |
|
07IBT |
112-1120 |
14-30 |
1.8 |
3/4” |
|
1IBT |
183-1837 |
16-36 |
2.5 |
3/4” |
|
3IBT |
451-4512 |
22-48 |
5 |
1” |
|
5IBT |
752-7528 |
27-56 |
8 |
1 1/2” |
|
8IBT |
1078-10780 |
30-64 |
11 |
1 1/2” |
|
10IBT |
1551-15516 |
36-72 |
15 |
2 1/2” |
|
15IBT |
2019-20194 |
39-80 |
23 |
2 1/2” |
|
20IBT |
2666-26664 |
42-90 |
26.5 |
2 1/2” |
|
25IBT |
3472-34725 |
48-100 |
35 |
2 1/2” |
|
35IBT |
4866-48666 |
64-120 |
50 |
2 1/2” |
|
50IBT |
7200-72000 |
72-125 |
87 |
2 1/2” |
LOW series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench directly acts on the nut, and its volume is thin and light, which is very suitable for working in a small space. The LOW series hollow wrench can replace the working head and assemble the reducer to adapt to different working conditions. It covers all bolts from S19 to S175.
Product introduction
XLCT series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench acts directly on the nut, and its volume is thin and light, which is very suitable for working in a small space. The XLCT series hollow wrench can adapt to different working conditions by replacing the working head and assembling the reducer sleeve. It covers all bolts from S19 to S175.
H Series hollow hydraulic torque wrench is specially designed for narrow spaces. It can be equipped with working heads of different specifications to adapt to different bolt working conditions. The working head can be replaced at will without any tool assistance, and it can be learned immediately. The simple replacement operation can save a lot of time at work to improve work efficiency. The aviation material of aluminum-titanium alloy makes it have a light body and adapt to ultra-high-intensity work.
