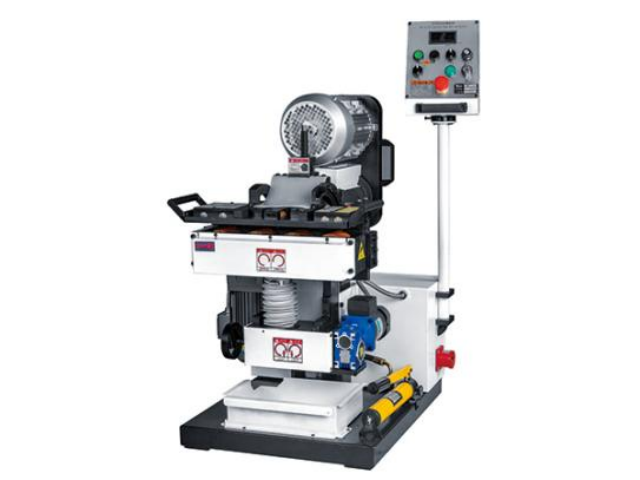

SKF Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling.This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.
|
Model |
SKF-840 |
SKF-830 |
SKF-820 |
SKF-810 |
SKF-800 |
|
|
Power |
6.52 KW |
6.52 KW |
6.88 KW |
4.52 KW |
4.52 KW |
|
|
rotation |
500-1050 rpm |
500-1050 rpm |
500-1050 rpm |
500-1050 rpm |
500-1050 rpm |
|
|
Feeding |
0-1500 mm/min |
0-1500 mm/min |
0-1500 mm/min |
0-1500 mm/min |
0-1500 mm/min |
|
|
Plate Thickness |
6-80 mm |
6-80 mm |
10-100 mm |
6-60 mm |
6-60 mm |
|
|
Plate width |
≥80 mm |
≥80 mm |
≥80 0mm |
≥80 0mm |
≥80 mm |
|
|
Plate Length |
≥300 mm |
≥300 mm |
≥300 mm |
≥300 mm |
≥300 mm |
|
|
Beveling angle |
0°-±60° |
0°-60° |
0°-90° |
0°-90° |
0°-60° |
|
|
Beveling width |
0-70 mm |
0-70 mm |
0-80 mm |
0-60 mm |
0-45 5mm |
|
|
Single bevel width |
15-20 mm |
15-20 mm |
15-20 mm |
0-20 mm |
0-20 mm |
|
|
Cutter diameter |
Ø80 mm |
Ø80 mm |
Ø100 mm |
Ø63 mm |
Ø63 mm |
|
|
Insert qty. |
6pcs |
6pcs |
6pcs |
6pcs |
6pcs |
|
Electric: AC 380V 50HZ 3P
This series of products is based on the milling principle of German ZL machining centers, designed for milling the required bevels on steel plate edges. It is suitable for pre-weld beveling or milling processes requiring high surface finish quality on the bevel face.
When processing large plates, the plate remains stationary while the machine automatically walks along its edge for processing. For smaller plates, the machine can be fixed, and the plate is automatically fed through the machine to complete the beveling process. The product is widely used in shipbuilding, metallurgy, steel structure, petrochemical industry, pressure vessel manufacturing, mechanical processing plants, mining equipment plants, power generation, heavy industry, and aerospace welding fields. It processes materials including common structural steel, cast iron, hard plastics, stainless steel, non-ferrous metals, etc.

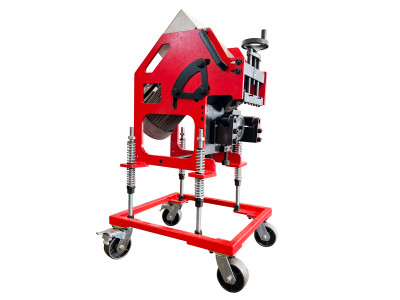

portable plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. Adopts milling process, handy feeding, small volume and light weight,

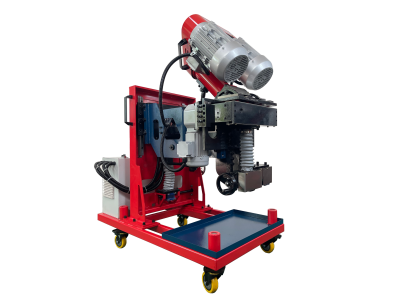

The rolling shear type self-propelled walking plate beveling machine processes the required bevel on the edge of steel plates. It is suitable for pre-welding bevel preparation or high-efficiency processing where high beveling speed is required.
When processing large plates, the plate does not need to be moved; the machine automatically walks along the plate edge for processing. When processing small plates, the machine can be fixed in place; it pulls the plate in, and the plate moves automatically to complete the beveling.
This machine features fast processing speed, precise and convenient bevel angle adjustment, and can form the bevel surface in a single pass. It is suitable for processing plates made of carbon steel, stainless steel, alloy steel, and more.
